FRDM-MCXA153 Geliştirme Kartı
MCXA15x Arm Cortex-M33 Core 64Mhz 128KB Flash 32 kB Ram Uart Spi I2C Usb Dma Onboard Jtag

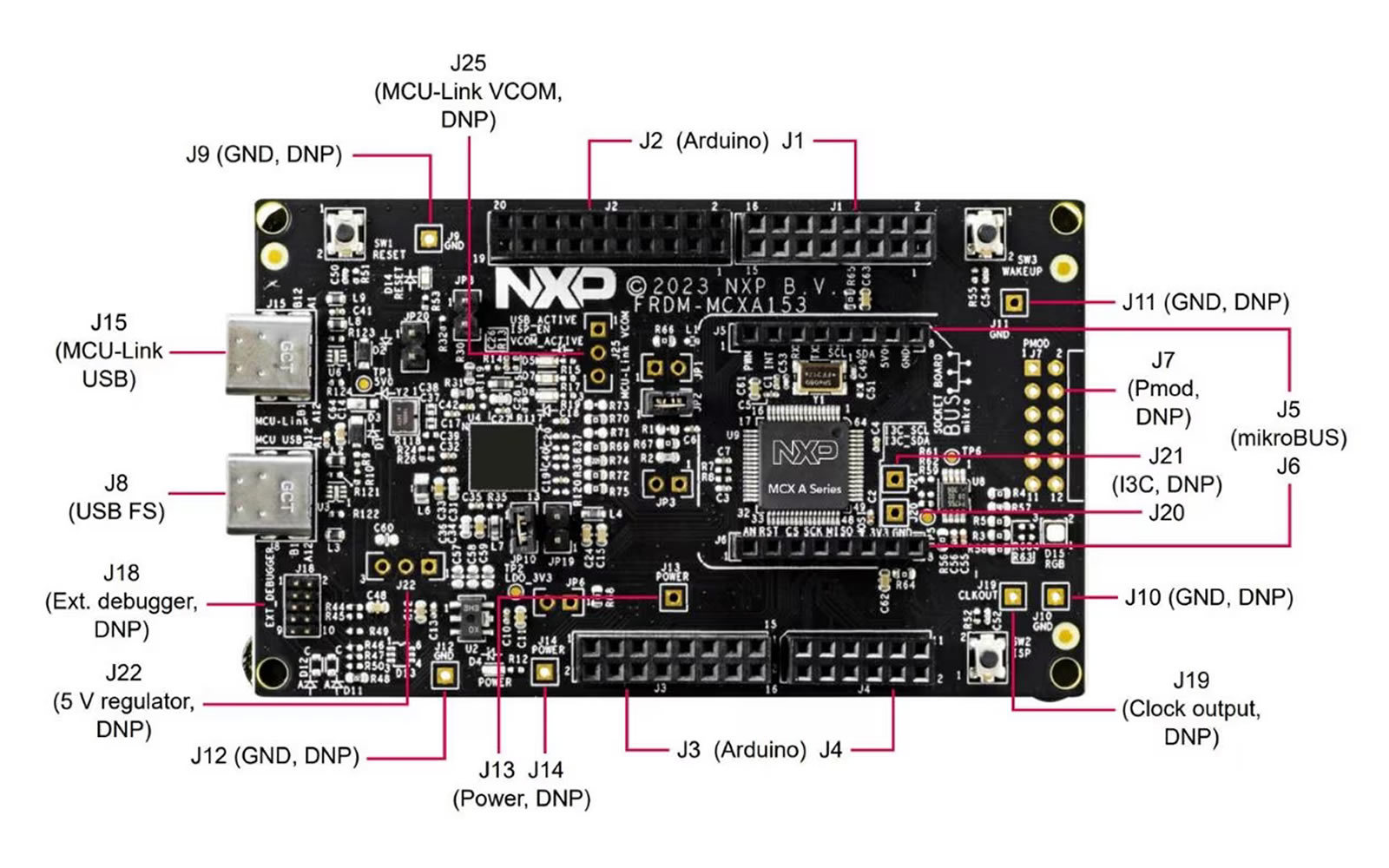

FRDM-MCXA153 are compact and scalable development boards for rapid prototyping of MCX A14 and A15 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
The FRDM-MCXA153 board is a design and evaluation platform based on the NXP MCXA1xx MCU. The MCXA1xx MCU is a low-power microcontroller for industrial and consumer Internet of Things (IoT) applications. It has one Arm Cortex-M33 core running at speeds of up to 96 MHz. It supports industrial communication protocol, brushless direct current (BLDC) motor / permanent magnet synchronous motor (PMSM) control, and integrated sensor interfaces (MIPI-I3C, I2C, and SPI).
The board is compatible with the Arduino UNO R3 and Mikroe click boards. It can be used with a wide range of development tools, including NXP MCUXpresso IDE, IAR Embedded Workbench, and Arm Keil MDK. The board is lead-free and RoHS-compliant.
For debugging the MCXA1xx MCU, the FRDM-MCXA153 board uses an onboard (OB) debug probe, MCU-Link OB, which is based on another MCU, LPC55S69. The MCXA1xx MCU and the LPC55S69 MCU are also referred to as "target MCU" and "debug MCU", respectively, in this document.
Features:
Microcontroller
- MCXA15x Arm Cortex-M33 core
- Up to 128KB flash with up to 32 kB RAM with 8kB ECC, LPLUART, LPSPI, LPI2C, FS USB, DMA and LDO
Connectivity
- FS USB ports with USB Type-C connector for host or device functionality
- HS USB Type-C connectors (On-board MCU-Link debugger)
- SPI/I2C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
Debug
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
Sensor
- P3T1755DPJ I3C/I2C temp sensor
Expansion Options
- Arduino Header
- FRDM Header
- Pmod DNP
- mikroBUS
User Interface
- RGB user LED, plus Reset, ISP, wake up buttons
Paket içeriği :
- 1 Adet FRDM-MCXA153
