S110-24T2SR
Overview
Table 4-24 Basic information about the S110-24T2SR
| Item | Details |
|---|---|
| Description | S110-24T2SR (24*10/100/1000BASE-T ports, 2*GE SFP ports, AC power) |
| Part Number | 98012196 |
| Model | S110-24T2SR |
Components

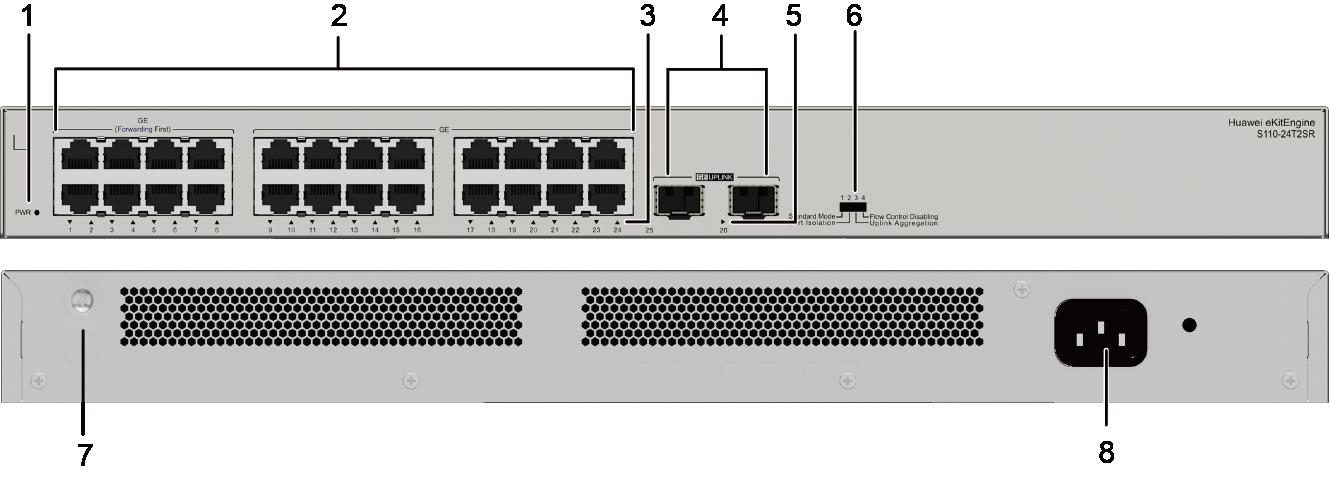

Figure 4-7 S110-24T2SR appearance
1 | PWR indicator | 2 | Twenty-four GE electrical ports NOTE:Only the new model with the Forwarding First silkscreen on the front panel supports the Forwarding First function. This function is available on ports 1 to 8. With this function, traffic on ports 1 to 8 is preferentially forwarded when traffic congestion occurs on uplink ports. |
3 | Electrical port indicator | 4 | Two GE optical ports |
5 | Optical port indicator | 6 | Port mode switch button NOTE:Standard Mode: All ports are in the same VLAN, and the flow control function is enabled. Port Isolation: All downlink ports are isolated from each other and cannot communicate with each other. Downlink ports can communicate only with uplink ports. (The last two downlink electrical ports are not isolated.) Uplink ports are not isolated or aggregated. Uplink Aggregation: Two uplink optical ports are aggregated into a trunk interface. Eth-Trunk supports load balancing only based on source physical ports. Flow Control Disabling: All ports are in the same VLAN and flow control is disabled. |
7 | Ground screw | 8 | AC socket NOTE:Use the power cable delivered with the device. |
